AL-NET-8

iControl Electronics Co., Ltd
www.icontrol.com.vn

•  Artnet, 8 Universal DMX System.
•  Standard DMX-512 8 Universal DMX System.

•  High Speed DMX-1000K(1M) 2048 dmx channels per universe

iControl Electronics Co., Ltd
www.icontrol.com.vn

About AL-Net-8
Introduction:
Thank you for your purchasing the Acclaim Lighting 8 Universal DMX System(AL-NET-8). To optimize the performance of this product, please read these operating instructions carefully to familiarize yourself with the  basic operation of this system. The Acclaim Lighting AL-NET-8 is simple to use, 8 Universal  DMX System. All system components & software have been tested at the factory before being shipped to you. These software include X-mapping & X-Software. Before use this system, please backup them in  your computer, then simply connect the LAN-cable(RJ45) between  your AL-NET-8 and  your computer, then you're ready to go!

Art-Net test Software

iControl Electronics Co., Ltd
www.icontrol.com.vn

Controlling Lighting Systems with DMX

iControl Electronics Co., Ltd
www.icontrol.com.vn

Professional lighting is controlled with a protocol known as DMX. The object of DMX is to separate the controlling device from the circuitry that actually dims the instrument. This saves enormous expense, since heavy duty wiring no longer must be run from the lighting booth to the stage. In fact, the latest trend is to put the dimming circuitry in the lighting instruments themselves. This means lights can all be attached to a single feed which is always on. Lighting instruments are also developing new features, such as pan and tilt, color control, internal gobos
, and even built-in lasers.

Artnet Controller DMX - CHFSOFT 2011

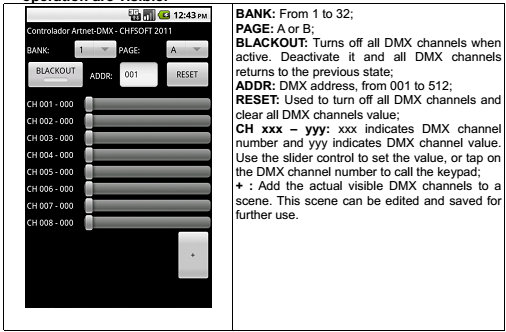

1 – The main screen:
In the main screen, all the controls necessary to the normal operation are visible:

iControl Electronics Co., Ltd
www.icontrol.com.vn

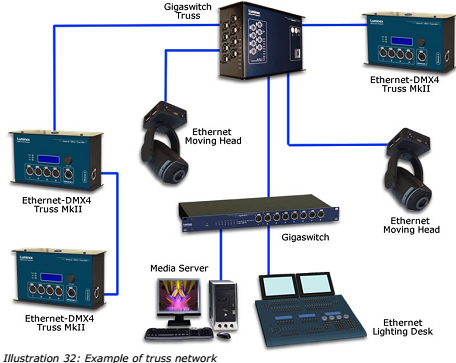

Ethernet-DMX4 Truss, Gigaswtich Truss

iControl Electronics Co., Ltd
www.icontrol.com.vn

Truss mounted network:

This feature is definitely a Luminex bonus, as Luminex is one of the rare manufacturer to offer complete truss mounted network solutions.

IP triggering with 2 media servers

iControl Electronics Co., Ltd
www.icontrol.com.vn

This  configuration  example  (Illustration  22)  can  be  realized  in  different ways. Here we want to establish a backup source to the primary one for the  distant  site.  This  backup  source  can  be  either  a  DMX  or  an  ArtNet source. The following drawing shows the second case (artNet source).

Input/Output Box for Media Server

iControl Electronics Co., Ltd
www.icontrol.com.vn

In this setup, the related products will be used as input/output boxes (see Illustration 12) . One outlet of the Luminex device will be set as an input in  order  to  convert  DMX  packets  from  the  lighting  desk  to  control  the ArtNet media server. Then, all the other outlets will be set to DMX output, to have artNet packets, coming from the Media server, converted to DMX
universes.
