Input/Output Box for Media Server

ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn


In this setup, the related products will be used as input/output boxes (see Illustration 12) . One outlet of the Luminex device will be set as an input in  order  to  convert  DMX  packets  from  the  lighting  desk  to  control  the ArtNet media server. Then, all the other outlets will be set to DMX output, to have artNet packets, coming from the Media server, converted to DMX
universes.

All outlets can be configure one by one, but all Luminex devices offers to quickly recall a built-in profile to setup the unit.

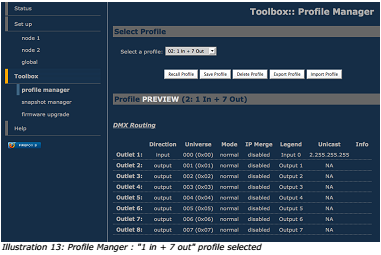

The  following screenshots  (Illustration 13)  display the  “profile  manager” page from the built-in Webserver. The selected profile is the one used in this example.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
Unicast

The  ArtNet  protocol  used  in  all  Luminex  Ethernet-DMX  devices  is  a broadcast protocol; this mean every packet sent from a single transmitter will be received by all receivers on the network. This can be useful if by instance you wish universes 1 and 2 to be available on several points of the set up. However, some Ethernet equipments, that should not received these packets, will see their link bandwidth consumption increase for no gain. This has not a big impact on wired network, depending on the type of converter you use.
But increase the number of universe on a wireless link can result in a very bad  connection  between  your  wireless  nodes.  This  is  why  it  can  be sometimes useful to use unicast mode.
In  the  example  below,  we  can  stream  through  ArtNet  the  4  universes needed  here  to  each  wireless  node;  but  to  avoid  the  bandwitdth consumption problem, we use the unicast feature to send the universes to the dedicated output boxes.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn


The  following  illustration  (14)  shows  how  to  set  unicast  address  per universe.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
Local Merging

In this setup (see  Illustration 15), the related product will be used as am merger. The aim of this application is to merge two different DMX sources into one single Luminex device. This configuration can also be used if you want to have a main and backup desk system.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
By using the built in Web server of each related product, you can create complexe merging policies on each channel of each outlet; for instance, merging channels 1 to 34 from both sources in HTP mode, then channels 35 to  256 in LTP. The rest of the channels can be set  to act  as backup source for the primary desk.
The  following  screenshots  give  you  an  overview  of  what  can  be  done through the Web interface.
The first screenshot (Illustration 16) shows you how to quickly set up the second  outlet  as  a  merged  input  (in  that  example,  all  channels  will  be merged in HTP mode). For a deeper configuration of the merging policy, you can set the second outlet as a “Custom” input.
Then, a new pop up windows (see  Illustration 17) allows you to set the desired  merging  policy  on  each  channel.  You  can  also  notice  that  this system provides the opportunity to create a complete softpatch (the patch will be recorded directly into the node, but can also be saved and loaded).


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn


Local Backup

In this setup (see  Illustration 18), the related product will be used as a backup switcher.In case of DMX failure from the first source, the Luminex device will automatically switch to the other source within the time you've chosen. The goal of this application is to deploy a backup solution to your lighting source. Connect your 2 DMX sources to the Luminex device, then configure either from the front end or the Web interface the backup time (time within the backup outlet has to wait before being activated in case of primary DMX source failure).


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
The following screenshots (Illustration 19) display the configuration of the Luminex device to backup 2 DMX lines.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
IP Merging

In this setup, the Luminex device will be used as networked merger. This means  you  can  easily  merge  2  DMX  streams  or  ArtNet  streams  coming from any place of the network. In our example, we merge 2 DMX streams coming from the F.O.H desk and the Stage desk.
Compare  to  the  local  merging,  the  main  settings have  to  be  set on  the output outlets, and not on the input outlets.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn


Thanks  to  the  Luminex  firmware,  you  can  choose  any  kind  of  merging policy for your output  outlets; you  can even select a  dedicated merging policy either for a single channel or for a range of channels.
The following screenshot (Illustration 20) is a good example of how to set your outputs outlets to create an IP merging.

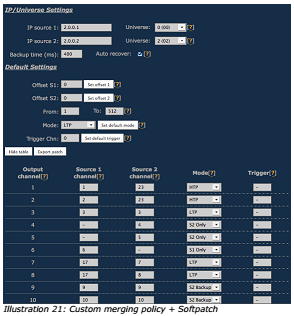

The popup frame (Illustration 21) display the choice you have to select the desired policy for each of the channels. You can also notice the use of the softpatch.


ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn

ArtNet Controller
iControl Electronics Co., Ltd
www.icontrol.com.vn
